LIUGONG Forklift Truck PDF Manuals

Download
LiuGong 2020-2025h Forklift Truck Brochure
LiuGong 2020-2025h Forklift Truck Brochure
LiuGong 2020-2025h Forklift Truck Brochu
Adobe Acrobat Document 148.7 KB
Download
LiuGong 2050h Forklift Truck Brochure
LiuGong 2050h Forklift Truck Brochure
LiuGong 2050h Forklift Truck Brochure.pd
Adobe Acrobat Document 147.3 KB

Download
LiuGong 2160h Forklift Truck Brochure
LiuGong 2160h Forklift Truck Brochure
LiuGong 2160h Forklift Truck Brochure.pd
Adobe Acrobat Document 82.9 KB
Download
LiuGong CPCD30-35 Forklift Truck Brochure
LiuGong CPCD30-35 Forklift Truck Brochure
LiuGong CPCD30-35 Forklift Truck Brochur
Adobe Acrobat Document 112.4 KB

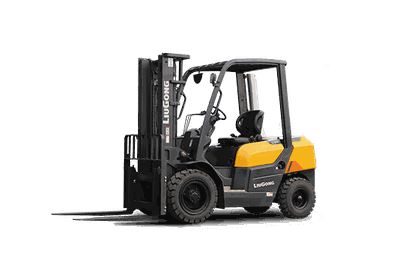

LiuGong Forklift Truck

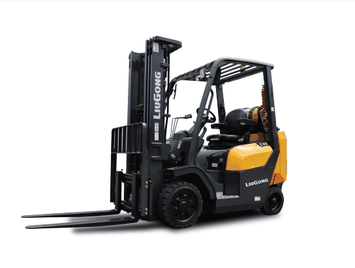

LiuGong LPG Forklift

Features LiuGong CPD10 Forklifts

Above on the page there're some Technical PDF Manuals for LIUGONG Forklift Trucks.



The LiuGong CPD10 electric truck is a new generation of durable and easy-to-operate warehouse equipment.



When designing it, innovative technologies and long-term developments of the company in this area were used.



Pluses of the model.



The machine is equipped with lead-acid traction batteries manufactured by Elhim-ISKRA, Bulgaria. They can withstand up to 1700 charge-discharge cycles, and the efficiency of return reaches 95%.



The four-cylinder engine of average power has a volume of 2. 27 liters. In terms of its characteristics and reliability, it is not inferior to European and Japanese counterparts.



The motor instantly responds to operator commands, and the gearbox instantly changes speeds, allowing you to maneuver and solve complex tasks in a limited space.



The workplace of the driver-operator meets the requirements of ergonomics, provides comfort during the shift.



The LCD display allows you to monitor the status of all important systems in real time.



The design of the machine provides quick and hassle-free access to units and mechanisms, places for connecting electrical cables and filling oil and working fluids. This simplifies and speeds up maintenance and repair work.



TECHNICAL SPECIFICATIONS LIUGONG CPD10 Forklift Truck.



The forklift has an operating weight of 2. 65 tons with a load capacity of 1 ton.



The model is equipped with a drive motor brand Xinchai, created under a Japanese license. Its power is 5 kW, and a battery with a capacity of 400 Ah, with a voltage of 48 V.



The power of the lifting motor is 6. 3 kW.



The steering motor has a power of 0. 55 kW.



EV brand controller installed.



LiuGong CPD10 forklift truck dimensions: length 2. 94 m, width 1. 07 m, cabin roof height - 2. 11 meters.



The folded mast has a height of 1. 995 m, raised to a maximum height of 3. 95 m.



For a turn, a platform with a radius of 1. 85 meters is required. A minimum of 3. 3 meters is required to turn with a load on the rack.



The maximum lifting height is 3 meters, at a speed of 28 cm / s.



The mast is able to tilt forward 60, back 120.



Fork free play - 11 cm.



The maximum angle of inclined surfaces, ramps for movement with cargo is 12%.



The speed of movement with a load is 14 km / h.



The forks are 92 cm long, 1 meter wide and 3. 5 cm thick.



It is possible to install masts with a height of 5 or 6 meters.



The motor resource of the engine is 3 years or 4, 000 working hours.
